MARK 7
The truly poweful machine that gives you 7 great tools in 1 machine
MARK 7 with Touch Screen Smart Motor
557000
The Shopsmith MARK 7 is the perfect woodworking machine for everyone, whether you're a seasoned expert or just getting started. Its all-in-one design combines a table saw, lathe, drill press, horizontal borer, disc sander, over-table shaper, and under-table router, making it ideal for workshops with limited space.
Compact yet powerful, the MARK 7 delivers the precision of dedicated tools without taking up the room of a full shop, helping you create incredible DIY projects no matter your skill level or space constraints.
* Premium Retractable Casters not included with purchase of the MARK 7
$5,249
.jpg)
A FULL COMPLEMENT OF STANDARD ACCESSORIES
TO HELP YOU GET STARTED ON THE ROAD TO WOODWORKING SUCCESS!
1 UPPER & LOWER SAW GUARDS
Includes built-in dust collection port & see-through upper guard with riving knife. Dual, cam-style pawls prevent kick-backs.
2 10″ ALL-PURPOSE SAW BLADE
Premium quality, 50-tooth carbide-tipped blade for ripping & crosscutting.
3 SAW BLADE ARBOR
Large, 1-1/4″ diameter arbor is specially designed to provide added blade support & smooth-running operation.
4 ALUMINUM RIP FENCE
Locks at both front & rear of table for precision ripping – also serves as a guide and/or backstop for drilling, sanding & other operations – offers two T-slots on top surface & one on each face of fence for attaching jigs & fixtures
5 MITER GAUGE
Squeeze-style safety grip clamps the workpiece firmly to the gauge bar for slip-free operation – protractor is accurate to 1/2°, with adjustable auto-stops at common angles – gauge bar slides in T-shaped table slots to prevent accidental drops & provide extended crosscutting capacity
6 EXTENSION TABLE SYSTEM
Includes one base-mounted & two floating style tables with four connecting tubes & two telescoping legs for added workpiece support ways
7 SHOPSMITH SAFETY KIT
Award-winning kit includes a push stick, a push block with anti-slip foam bottom, a fence straddling push block & an adjustable feather board
8 SAFETY GOGGLES
Wrap-around style with ventilated sides – work over glasses without fogging
9 12″ SANDING DISC & SANDPAPER
Steel disc with 113 sq. in. of surface – Includes one pressure-sensitive, medium grit sandpaper disc
10 LATHE CENTERS
Spurred drive center & cup-style dead center for spindle turning
11 LATHE TOOL REST
Slides into table carriage to provide support for lathe chisels during turning
12 LATHE TAILSTOCK
Adjustable mount holds dead center (or optional live center) during turning – Adjusts for offset turning such as Cabriole Legs
13 DRILL CHUCK & KEY
1/2″ capacity geared
14 ALLEN WRENCHES
The only tools you’ll need to change operations
15 COUPLING KIT
Used to power Bandsaw, Jointer & other major accessories – includes one unbreakable Zytel Coupler & two drive hubs at common angles
16 SHAPER ARBOR
1/2″ arbor includes four assorted size rub collars
17 SHAPER / ROUTER SHIELD
Used for routing and under-table shaping- attaches to back of worktable & provides dust collection hook-up
18 SHAPER/ ROUTER TABLE INSERT
Features 2-1/4″ diameter center hole – includes two threaded starter pins for shaping & mounting holes on underside for shaper vacuum attachment (Vac attachment cannot be used during under-table shaping or routing
19 1/2″ ROUTER CHUCK
Precision-machined steel chuck accepts all Router Bits with 1/2″ shanks
19 ARBOR WRENCH
Ends fit both positions on Arbor plus the nuts on the Dado Arbor and Shaper Arbor
The 7 Functions of the MARK 7
Enjoy all the woodworking capabilities you could want in the space you have now!
The left side of this diagram shows how the collective storage footprint required to house just 7 of the common tools in a Workshop will promptly boot one of your family cars right out of the garage! Plus, you’ll have loads of time-consuming tool shuffling to do before you can start enjoying your shop time.
The right side of this diagram shows how the Shopsmith Multi-purpose Tool shop (including every tool you see in the left side of the diagram, plus more) stows neatly away on the floor and on a shop-made, wall-mounted shelf…occupying just 2 feet x 6 feet of floor space along the front of the garage. Plenty of room to work without excess tool shuffling — and ample space for two family cars.
LET US BUILD YOU A SHOPSMITH TODAY
MARK 7 with PowerPro Smart Motor 557000
Additional Attachments for Your MARK 7
Shopsmith 11" Bandsaw
555943
$749.95
Although bandsaws were originally developed to make curved cuts, it didn’t take long before users realized that it offered a number of great, straight-line cutting advantages, as well. For example, not many table saws (commercial or otherwise) will cut stock up to 6″ thick, or cut metal.
Shopsmith 4" Jointer
555483
$649.95
Jointers have Many Great Uses which make them a necessity in the Shop Including Flattening, Straightening and Truing-up Project Pieces.
Jointers are used to smooth and square board edges in preparation for glue-up into wider panels perfect for cabinet and furniture projects or really any woodworking project.
Shopsmith 6" Belt Sander
555355
$649.95
Save time and Money by using One of Our Most Versatile Tools - The 6” x 48” Shopsmith Belt Sander Few tools will save you more work and time than a Stationary Belt Sander.
Its straight-line action removes stock quickly and easily, then smooths surfaces and edges to a glass like surface by changing to a fine grit belt.
Shopsmith Strip Sander
555309
$529.95
Save Hours of Tedious Hand Sanding, Grinding and Sharpening with the Shopsmith Strip Sander!
This Versatile, Compact Machine Works Equally Well With All Types and Shapes of Materials. The Strip Sander is an often-forgotten, value-priced workshop addition that will save you countless hours of tedious hand work on a variety of woodworking tasks, as well as grinding, sharpening and polishing of chisels, other workshop edged tools and garden implements of all types.
Control Panel
Push button control for selecting variable Motor speeds (250 – 10,000 RPM in 10 RPM increments) and direction
MAIN POWER SWITCH
Child-proof with detachable key to prevent accidental starts
AUXILIARY SPINDLES
Used to power Bandsaw, Jointer & other Major Accessories
HORIZONTAL LOCKS
One on each end of machine.used to tilt Smart Motor & table from horizontal to vertical position for drilling and over or under-table Drum Sanding, Routing or Shaping operations
POWER MOUNT
Used to mount Extension Table or Major Accessories
RIP FENCE
Locks at front and rear of table for precise ripping or use as a positioning aid when drilling, sanding or performing other operations
EXTENSION TABLE
Mounts at either end of machine for added workpiece support
POWERPRO SMART MOTOR
State-of-the-art DVR (Digital Variable Reluctance) Motor develops 1-3/4 hp at 120 Volts or 2 hp at 240 Volts and is totally enclosed and fan cooled for durability. Click here for a quick overview of the features and benefits provided by Shopsmith’s PowerPro Smart Motor and DVR Motor
Floating Extension Table
Used to support the workpiece either between the Main Worktable and the Extension Table or outboard of either table. Used in combination with the 27” Connector Tube and Telescoping Legs for outboard support.
27” Connector Tube
Used to support the Floating Extension Table between the Main Worktable and the Extension Table. Also, used to support the Floating Extension Table outboard of either the Main Worktable or the Extension Table.
MITER GAUGE
Includes special work-holding Safety Grip and adjustable auto-stops at common angles
TELESCOPING LEGS
Provide added support for floating extension table
BASE ARM LOCK
One on each end of machine to secure machine safelv in vertical position in both directions for over-table Drill Press-based operations – or under-table Shaping operations
BENCH ENDS & TUBES
Provide rigid, wobble-free base for machine
CARRIAGE LOCK
Locks Carriage at any position along tubular ways
CARRIAGE
Supports Table and Lathe Tool Rest. Slides full length of tubular ways
QUILL HANDLE
Used to extend the Quill to its 4-1/4″ capacity
SAW GAURDS
Upper and lower guards provide operator safety and built-in dust collection port
SMART MOTOR LOCK
Locks Smart Motor at any location along the tubular ways
TABLE HEIGHT WHEEL
Uses geared rack-and-pinion system to raise and lower table
TABLE HEIGHT LOCK
Locks Table height settings
Way Tube
This pair of parallel tubes is the main support and guiding tubes for the Headstock and Carriage. Both Headstock and Carriage slide along, and then are locked in any position on the Way Tubes.
See The MARK 7 In Detail
These carefully-engineered features will make the MARK 7 easier to use and help you achieve better results!
10″ Table Saw
Power, Accuracy and Versatility Provide Professional Results
Every woodworking project begins by ripping and crosscutting your components to size. A top-quality table saw is vital to achieving the results you want. The Shopsmith 10″ Table Saw has the power, speed, and accuracy your project needs to achieve precise, smooth, burn-free cuts every time. Easy to install Extension Tables provide unparalleled workspace surface and when not needed, store away so that they are not taking up valuable shop floor space.
Plus, the Shopsmith’s 10″ diameter blade and powerful motor give you an ample depth-of-cut and up to 2 HP of raw muscle to zip through stock up to 3-1/4″ thick.
-
250 RPM to 10,000 RPM Variable Speed Drive
-
98″ Ripping Capacity With Extensions
-
95″ Of Back-to-Front Support With Extensions
-
Miter Guage Safety Grip Allows 5X Gripping Power
-
Self-Aligning, Double-Locking Rip Fence
12” Disc Sander
The Shopsmith Disc Sander is truly in a class by itself. No other disc sander (including big money commercial units) offers the extensive assortment of work-saving features and benefits. Shopsmith’s quill feed feature, you can actually move the Disc up to 4-1/4″ toward or away from your stationary workpiece. This unique feature allows you to make quick, easy micro-adjustments when sanding single or multiple components to a precise, identical dimension.
-
Large 17-1/2” x 22” Worktable Before Extensions
-
Infinitely variable Speed Range
-
Flexible Dust Collection Capabilities
-
Included Miter Gauge and Rip Fence For Quick Fixturing
Effortless Operation That Smoothes Out The Rough Edges.

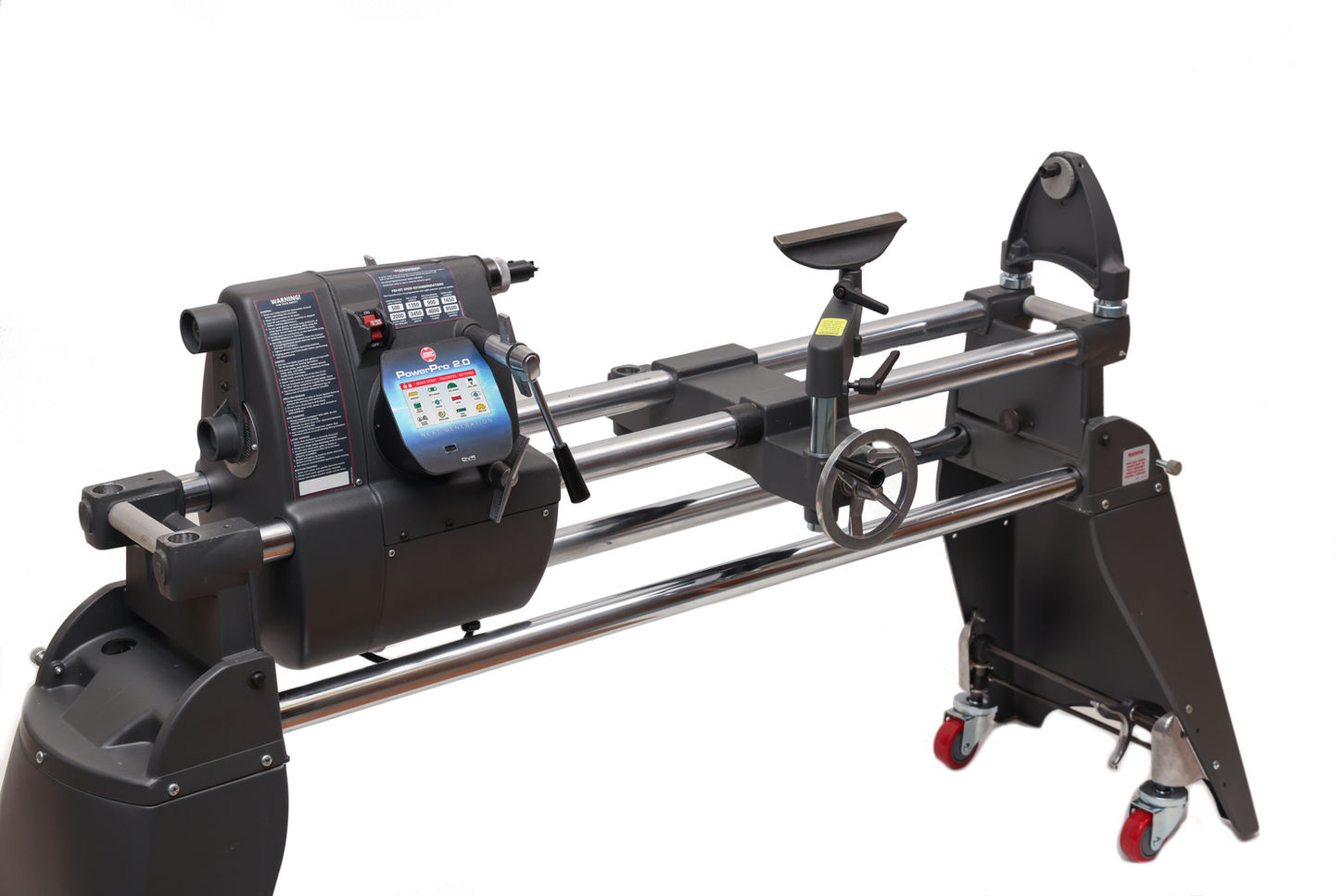

Shopsmith 34” Lathe
Bring Out Your Inner Artist Using The Shopsmith Lathe.
Lathe woodturning is relaxing, enjoyable and gives you immediate results. Imagine the feeling of creating a beautifully crafted platter, bowl, vase or similar object on the lathe that you shaped and smoothed yourself. Just apply finish and they’re ready to admire!
And, if you’re like many other woodworkers, you’ll also use the lathe for those money-saving D-I-Y projects or ultimate new creations such as:
-
Chair and Table Legs
-
Spindles for Beds and Porches
-
Stair Railings
-
Posts for Fences or Mailboxes
-
Holiday and Birthday Gifts
-
And, Many Other Applications
34” Lathe
Bring Out Your Inner Artist Using The Shopsmith Lathe.
Lathe woodturning is relaxing, enjoyable and gives you immediate results. Imagine the feeling of creating a beautifully crafted platter, bowl, vase or similar object on the lathe that you shaped and smoothed yourself. Just apply finish and they’re ready to admire!
And, if you’re like many other woodworkers, you’ll also use the lathe for those money-saving D-I-Y projects or ultimate new creations such as:
-
Chair and Table Legs
-
Spindles for Beds and Porches
-
Stair Railings
-
Posts for Fences or Mailboxes
-
Holiday and Birthday Gifts
-
And, Many Other Applications
Horizontal Borer
Convenient Precision and Repeatability That Saves Time.
Horizontal Boring Machines are major time-savers for a lot of different jobs. If you don’t believe that or have never heard of a horizontal boring machine, just ask an experienced cabinetmaker. The most obvious application for this machine set-up is doweling. Tilt your worktable to 20° and you have a built-in fixture for screw pockets.
And of course, as with all operations the variable speed feature (250 to 10,000 rpm) of the PowerPro Smart Motor lets you match your machine’s speed to the wood species and drill bit diameter for smoother holes without burning. Even the expensive commercial boring machines don’t offer this kind of variable speed flexibility!
-
Electronic Variable Speed
-
Large 17-1/2” x 22” Worktable Before Extensions
-
Center Drilling in the Horizontal Position
-
Horizontal Mortising Capabilities
-
Adjustable Quill Feed Depth-Of-Cut Dial and Lock
-
Included Miter Gauge and Rip Fence For Quick Fixturing
16-1/2” Drill Press
Loads of Muscle. Plenty of Speed.
The Shopsmith Drill Press combines extended work holding capacity, easy speed changes and superior versatility to provide an exceptional drill press, designed specifically for woodworkers. With a motor that delivers up to two horsepower and an amazing amount of torque at an infinitely variable speed range of 250 to 10,000 rpm – and you can change speeds at the touch of a button.
Drill to the center of a piece of stock up to 16-1/2″ in diameter. Enjoy 25″ of chuck-to-worktable surface distance and 58″ of chuck-to-floor distance. Get a full 4-1/4″ of up-down spindle travel controlled by a convenient, graduated hole depth indicator and easy-to-set adjustable stop. This Drill Press has plenty of capacity, even for your biggest jobs!
-
Drill Wood, Plastics, and Metals
-
Twin, Non-Twisting Support Columns
-
Tilts from 0° to 90°
-
Change Speeds in 1 RPM Increments
-
Included Miter Gauge and Rip Fence Make for Quick Fixturing

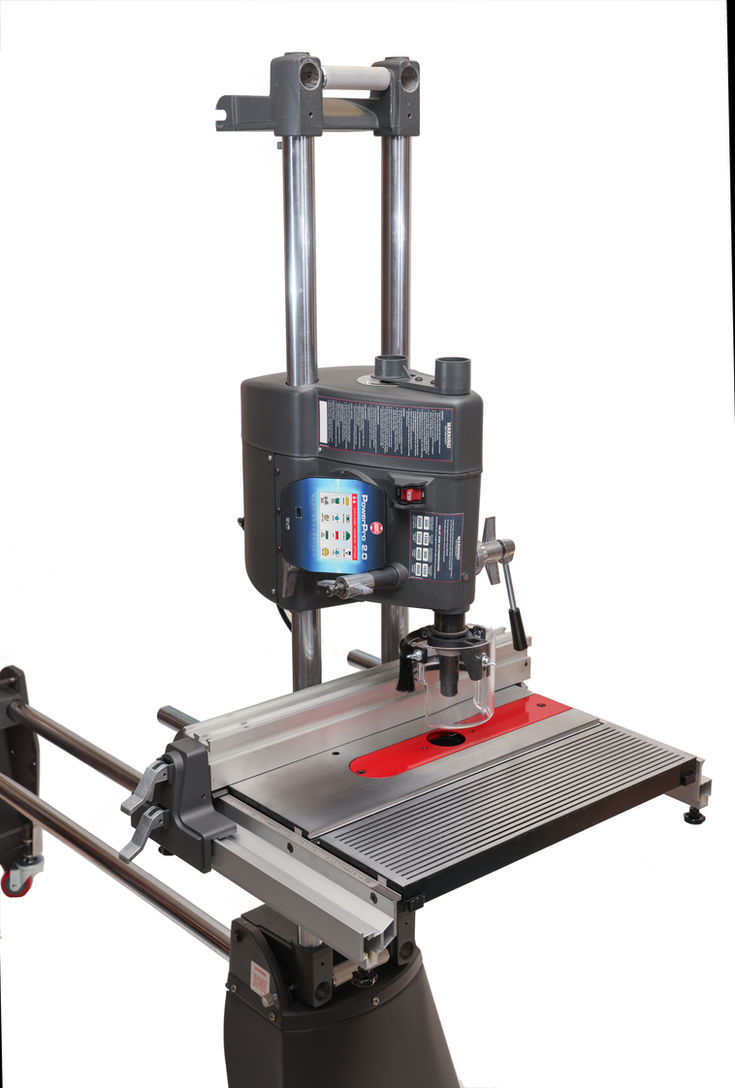

Over-Table Stationary Router
Power And Speed to Create Smooth Decorative Edges and Precise Joinery.
The Shopsmith MARK 7 gives you a full-featured, Over-Table Stationary Router. As an Over-Table Router, the machine is set up with the bit positioned above your workpiece. In this setup, depending on the operation being performed (dadoing, grooving and slot mortising are excellent examples), the operator always has a clear view of the cut as it’s being made.
Woodworkers who are not normally comfortable using hand-held routers will find that the MARK 7’s stationary router has been designed to give you the confidence to get great results.
-
Easily Converts from Drill Press to Over Table Router
-
Full Tilting 17″ x 22″ Worktable plus Extensions
-
10,000 RPM Creates Smooth Cuts
-
10,000 RPM Creates Smooth Cuts
-
Full Torque Across the Entire Speed Range
-
Included Miter Gauge and Rip Fence for Quick Fixturing

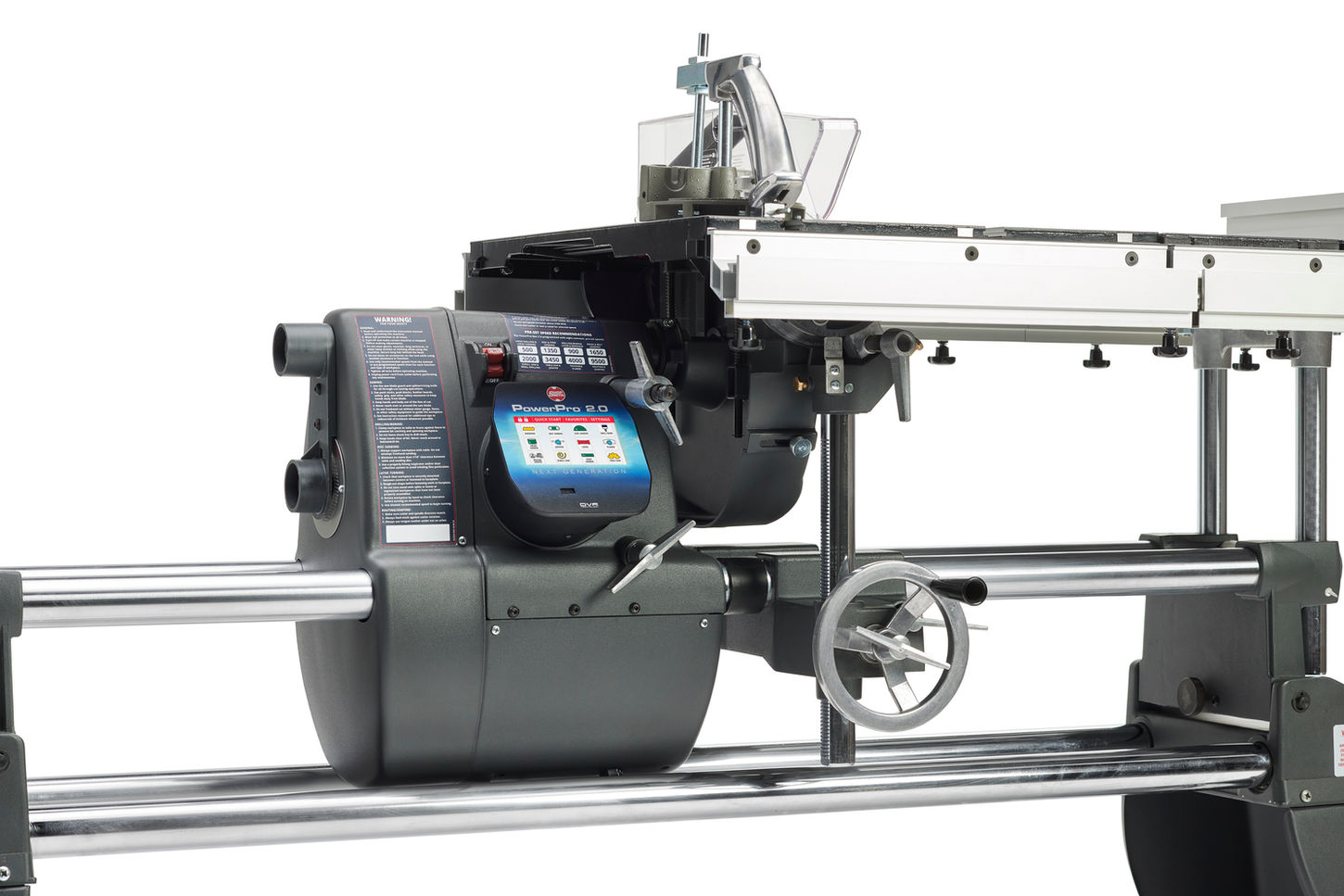

Under-Table Shaper
Power And Speed to Create Smooth Decorative Edges and Precise Joinery.
The new MARK 7 will function like a commercial shaper with the cutter below the worktable, a method preferred by many woodworkers. Some commercial shapers only offer two or three speeds. Shopsmith gives you the ability to select an infinite range of speeds in 1 RPM increments!
Tilt your worktable to make unique and specialized cuts — a capability that even commercial shapers costing thousands don’t offer! Thanks to the MARK 7‘s full tilting worktable, you can make an infinite range of unique, angled, decorative-edging cut combinations that are impossible to achiece with fixed-table commercial shapers.
-
Easily Converts to Under-Table Shaper
-
Full Tilting 17″ x 22″ Worktable plus Extensions
-
10,000 RPM Creates Smooth Cuts
-
Full Torque Across the Entire Speed Range
-
Included Miter Gauge and Rip Fence for Quick Fixturing
