MARK V 505 / 510 Fence Service Parts

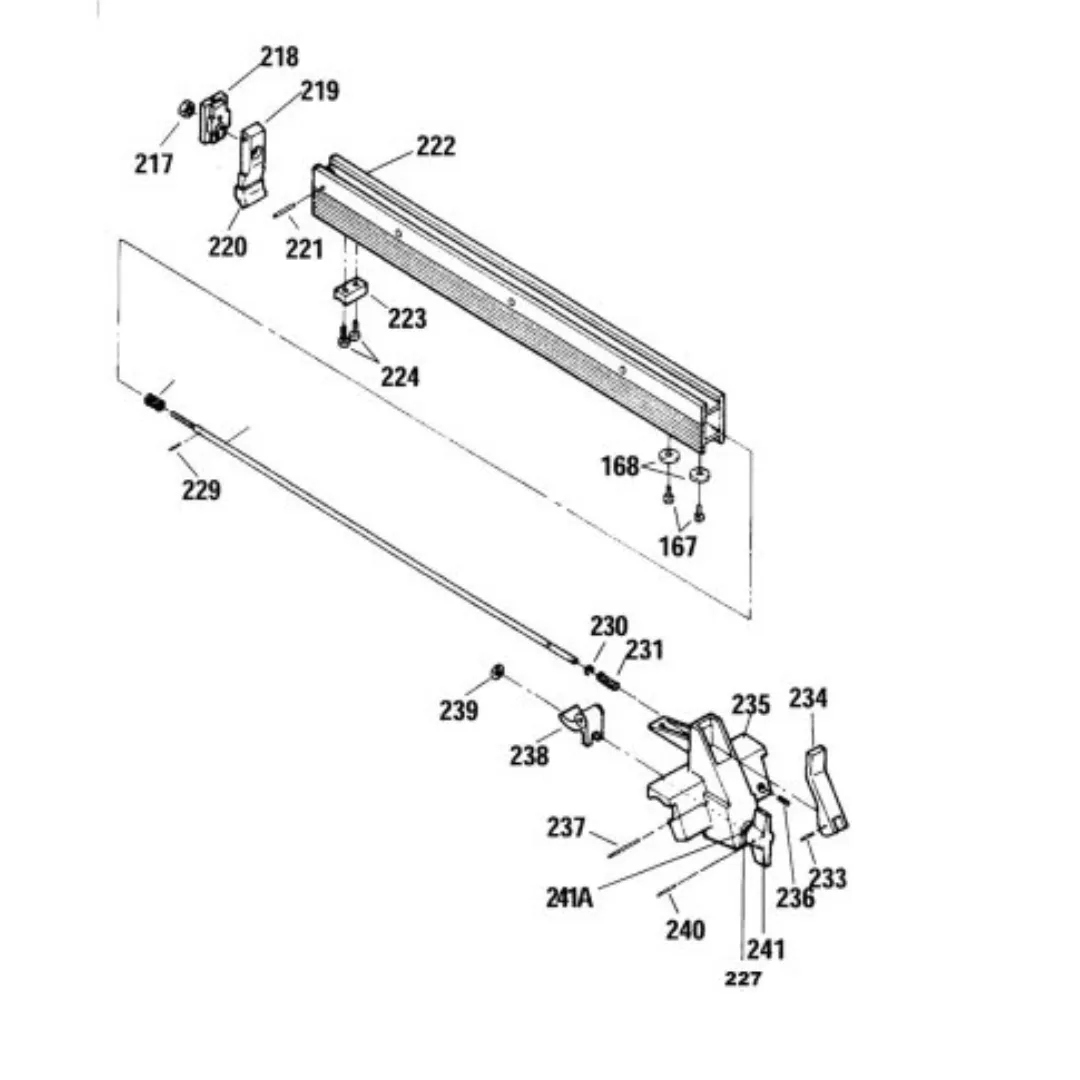

Exploded Diagrams

Inspect the diagram, then search by reference number, SKU, or description.

RefSKUDescriptionStatus

216z514378(incl 217-241)Not Available

217515286Locking Hex Nut with Nylon InsertNot Available

218z514455(incl 219-220)Not Available

218515114MARK V 510 Rip Fence Outfeed End CapNot Available

219514259-Not Available

220514454-Not Available

221514391MARK 7 / MARK V 520/510/505 Rip Fence Outfeed Lock Roll PinNot Available

221z514930(incl 222-224)Not Available

222515328MARK V 510/505 Fence ExtrusionNot Available

223514924-Not Available

224514925MARK V 510/505 Rip Fence Fillister Head ScrewSHOP NOW

225515426Pan Head ScrewSHOP NOW

226502333Flat WasherSHOP NOW

227514568-Not Available

228514463Rip Fence Compression SpringSHOP NOW

229514389MARK 7 / MARK V 520/510/505 Rip Fence Outfeed Lock Rod Roll PinSHOP NOW

230514407External Retaining RingSHOP NOW

231514353Rip Fence & Table Tilt Lock Compression SpringSHOP NOW

231z514465(incl 232-234)SHOP NOW

232517838MARK V 510/505 Rip Fence Lock RodSHOP NOW

233514527Roll PinSHOP NOW

234514257Lock HandleSHOP NOW

234z514379(incl 235-240)SHOP NOW

235514254MARK V 510/505 Fence Base with InsertSHOP NOW

236102388Allen Set ScrewSHOP NOW

237514531Rip Fence Dowel PinSHOP NOW

238514567Rip Fence Infeed ClampSHOP NOW

239514386MARK 7 / MARK V 520/510/505 Rip Fence Base Infeed Lock Retaining RingSHOP NOW

240514527Roll PinSHOP NOW

241514384-Not Available

241A514568-Not Available

Parts DiagramMARK V 505 / 510 Fence Service Parts
