Service Parts

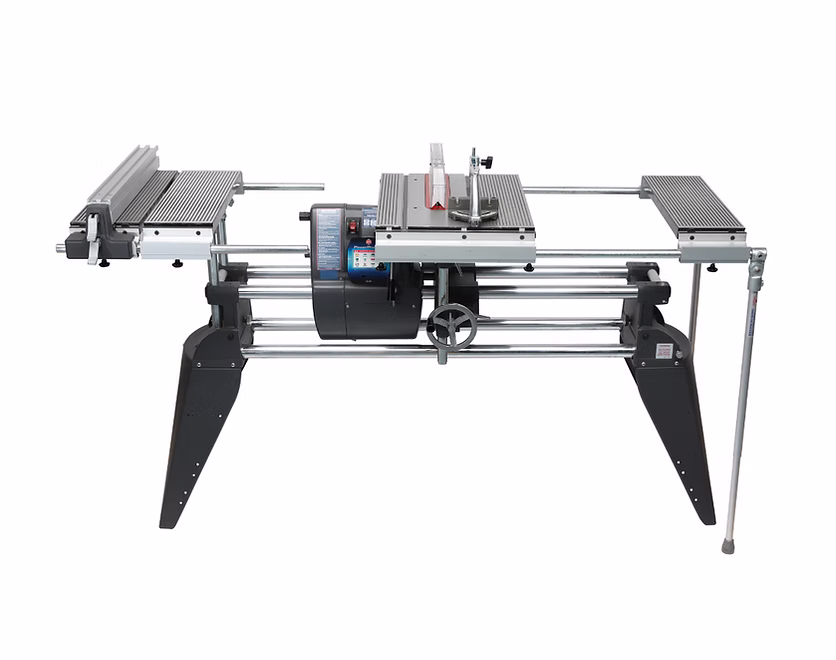

MARK 7 / 5 Service Parts & Information

Find Service Parts Lists and Exploded Diagrams for MARK 7, MARK 4, and MARK 5 machines.

Use the chart below to choose the column that matches your current machine configuration, including any upgrades made after purchase.

Service Reference

Service and Parts Information Links

Quick access to diagrams and parts lists by component and MARK machine generation.

SourceComponentMARK 7 / MARK V 520MARK V 510 / 505MARK V 500General Links

Service PartsPowerPro Gen 1 DVR Smart MotorDiagram & Parts List---

Service PartsMark V Conventional Headstock-Diagram & Parts ListDiagram & Parts List-

Service PartsMain TableDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsExtension & Floating TablesDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsRip FenceDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsCarriageDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsSaw GuardsDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsBench & BaseDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsMiter Gauge and Safety GripDiagram & Parts ListDiagram & Parts ListDiagram & Parts List-

Service PartsSwitch & Nameplate--Diagram & Parts List-

MARK 7 LinksMark V 505 510 Fence Service Parts---Diagram & Parts List

MARK 7 LinksMark V 505 510 Floating/Extension Tables Service Parts---Diagram & Parts List

MARK 7 LinksMARK 7 / MARK V MODEL 520 TABLE SERVICE PARTS---Diagram & Parts List

MARK 7 LinksMark V 505 510 Table Service Parts---Diagram & Parts List

MARK 7 LinksPOWERPRO SMART MOTOR Gen 1 SERVICE PARTS---Diagram & Parts List

MARK 7 LinksConventional Motor Service Parts---Diagram & Parts List

Attachment Parts

Parts By Attachment

Jump straight to the exploded diagram and service table for the attachment you need.

11 Inch BandsawView Diagram

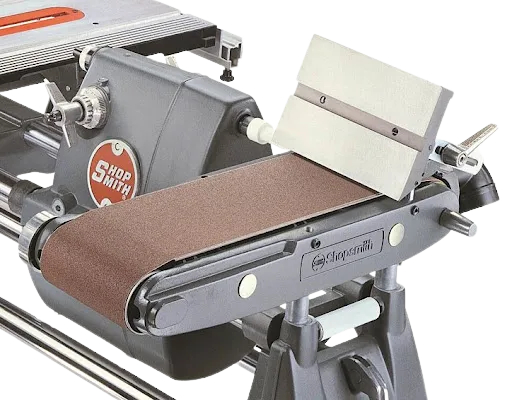

6" Belt SanderView Diagram

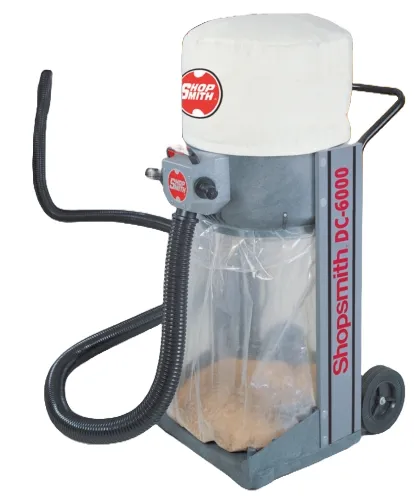

Dust CollectorView Diagram

4 Inch JointerView Diagram

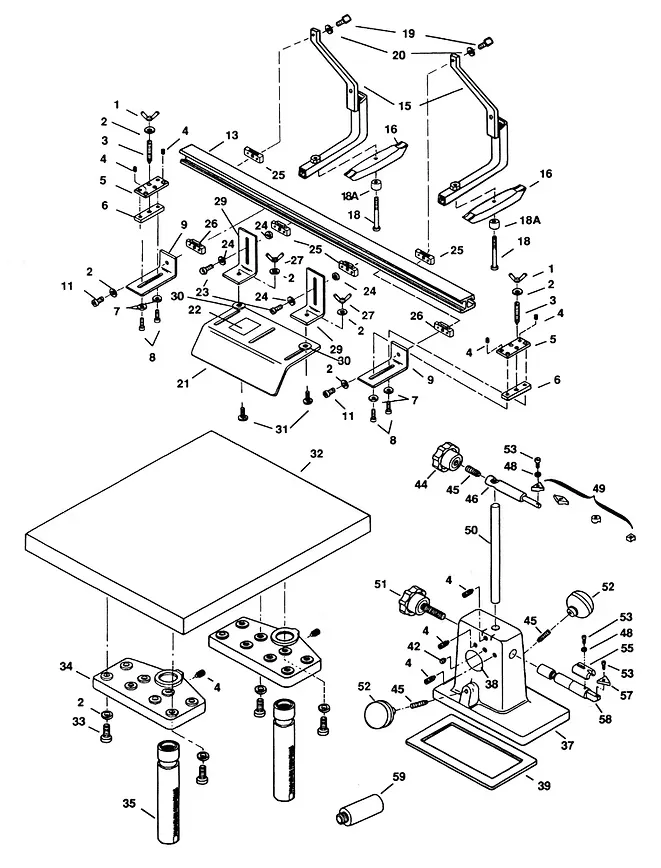

Lathe DuplicatorView Diagram

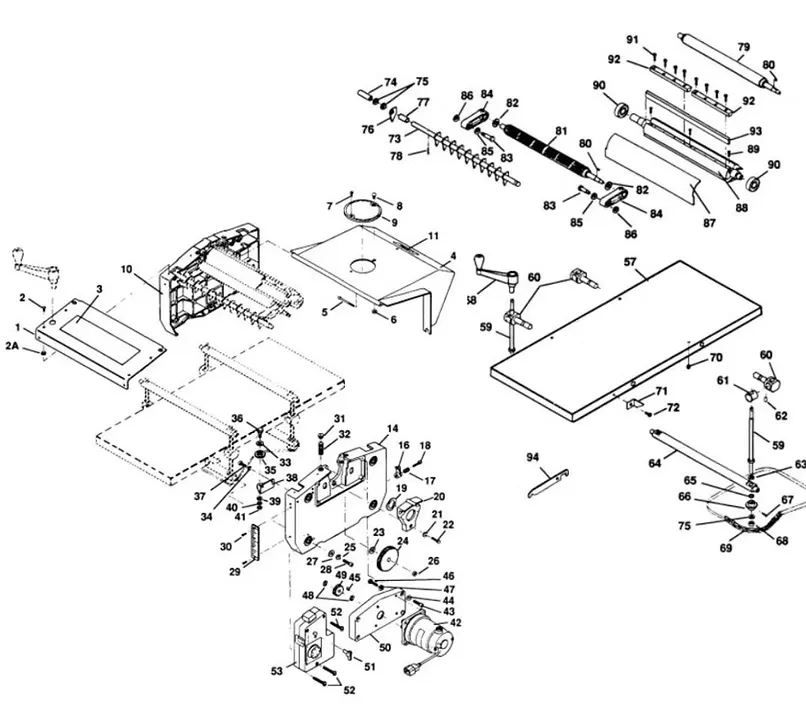

Pro PlanerView Diagram

Strip SanderView Diagram

Exploded Diagrams

Service Parts Lookup

Select a machine or attachment, inspect the diagram, then search by reference number, SKU, or description.

RefSKUDescriptionStatus

0z-Frame and CoverNot Available

1-Bandsaw Main Frame AssemblyNot Available

10436732Pan Head ScrewNot Available

100222458Allen Set ScrewSHOP NOW

101502656Bandsaw Lower Guide BlockSHOP NOW

102502575Bandsaw Blade Guide Tension SpringSHOP NOW

103502574Bandsaw Blade Guide Adjusting KnobSHOP NOW

104502659Bandsaw Blade Guide Adjusting Knob ScrewSHOP NOW

105514008Bandsaw Bearing Shoulder ScrewSHOP NOW

106502666Bandsaw Lower Guide BlockSHOP NOW

107102634Hex NutSHOP NOW

1085025809Bandsaw Lower Blade Guide Block BracketSHOP NOW

109120214Lock WasherSHOP NOW

11501470WasherNot Available

110122017Hex BoltSHOP NOW

110z522251(incl 111 112)SHOP NOW

111448027Pan Head ScrewSHOP NOW

112522219Bandsaw Drive Shaft GuardSHOP NOW

12502690Bandsaw Blade Tension Indicator ScaleSHOP NOW

13502686Bandsaw Tensioning Screw Retaining RingSHOP NOW

145027029Bandsaw Blade Tension NutSHOP NOW

15502701Bandsaw Blade Tension SpringSHOP NOW

16122040Hex BoltSHOP NOW

17120393Flat WasherSHOP NOW

18120373Square NutNot Available

19517640Bandsaw Arm AssemblySHOP NOW

2514525Strip Sander Warning LabelNot Available

20114663Flat Head ScrewSHOP NOW

21502685Bandsaw Blade Tension Mounting BracketSHOP NOW

22502704Bandsaw Upper Wheel Fiber WasherSHOP NOW

23502703Bandsaw Blade Tension Adjusting ScrewSHOP NOW

23z-Upper WheelNot Available

23z2502691Bandsaw Upper Wheel and Needle Bearing AssemblySHOP NOW

24-Upper Wheel and BearingsNot Available

25518108Bandsaw Tire (Single)Not Available

26517642External Retaining RingNot Available

27502704Bandsaw Upper Wheel Fiber WasherSHOP NOW

27z-Lower WheelNot Available

27z2509032(incl 28 29)SHOP NOW

28-Lower Wheel Bearing & AxelNot Available

29518108Bandsaw Tire (Single)Not Available

3-Date Code LabelNot Available

30120834Hex Head BoltSHOP NOW

30a120214Lock WasherSHOP NOW

31502726Bandsaw Lower Wheel Bearing RetainerSHOP NOW

31z-Table TrunnionsNot Available

32517635Pan Head ScrewNot Available

33501470WasherNot Available

34120393Flat WasherSHOP NOW

35426367Hex BoltSHOP NOW

36502667Bandsaw Table Tilt Indicator PlateNot Available

37502675Bandsaw Table Tilting TrunnionSHOP NOW

38515013Bandsaw Table Tilt Trunnion SupportSHOP NOW

39502676Bandsaw Trunion WasherSHOP NOW

4522088Bandsaw Cover StudSHOP NOW

40517021Bandsaw Table Tilt BushingNot Available

41120394Flat WasherSHOP NOW

42517084Bandsaw Flex Lock NutNot Available

43502699Bandsaw Tilt Lock Wave Spring WasherNot Available

44513061Table Tilt Lock Handle Assembly (pre-Oct. 1993)SHOP NOW

45274737Hex NutNot Available

46518306Bandsaw Aluminum Table Tilt Lock BoltNot Available

47517085Bandsaw Table Tilt Slotted ScrewSHOP NOW

48514053Flat WasherSHOP NOW

48z-MiscellaneousNot Available

495554191/4 Inch Premium Bandsaw Combination BladeNot Available

5102582Allen Set ScrewSHOP NOW

5051368601-Not Available

515137779Bandsaw & Belt Sander 6" Long Eccentric PostSHOP NOW

51z503740Drive Hub 5/8 InchSHOP NOW

525035769-Not Available

53222458Allen Set ScrewSHOP NOW

53z-Auto-Track Blade GuideNot Available

54514008Bandsaw Bearing Shoulder ScrewSHOP NOW

55120380WasherSHOP NOW

56514011Bandsaw Tension BearingSHOP NOW

57502682Bandsaw Tracking Bearing Mounting BracketSHOP NOW

58120375Hex NutSHOP NOW

59426367Hex BoltSHOP NOW

6522221Bandsaw Cover Upgrade with Window and Dust PortSHOP NOW

60120214Lock WasherSHOP NOW

60z-Upper Blade Guide and GuardNot Available

61514008Bandsaw Bearing Shoulder ScrewSHOP NOW

62120380WasherSHOP NOW

63514007-Not Available

64122017Hex BoltSHOP NOW

65517908Bandsaw Upper Guide Nylon Guide BoltSHOP NOW

66120214Lock WasherSHOP NOW

67120393Flat WasherSHOP NOW

68502552Bandsaw Upper Guide Retainer Brass Set ScrewSHOP NOW

69124824Hex Jam NutSHOP NOW

7522217Bandsaw Clear Plastic Window for Bandsaw CoverSHOP NOW

705025499Bandsaw Upper Guide RetainerSHOP NOW

715025549Bandsaw Upper Guide Blade Guide RodSHOP NOW

72502550Bandsaw Guide Lock SpringSHOP NOW

73515412Bandsaw Upper Blade Guide Tension ScrewSHOP NOW

74502657Bandsaw Upper Guide BlockSHOP NOW

755025779Bandsaw Blade Guide BracketSHOP NOW

76222458Allen Set ScrewSHOP NOW

77502656Bandsaw Lower Guide BlockSHOP NOW

78502575Bandsaw Blade Guide Tension SpringSHOP NOW

79501637Hex Head ScrewSHOP NOW

7a516027Speed Reducer Belt Tension Adjustment ScrewSHOP NOW

7b522087Bandsaw Cover Plastic WasherSHOP NOW

8501626Retaining RingSHOP NOW

805025589Bandsaw Upper Guide BracketSHOP NOW

81502574Bandsaw Blade Guide Adjusting KnobSHOP NOW

82502659Bandsaw Blade Guide Adjusting Knob ScrewSHOP NOW

83522223Bandsaw Blade GuardSHOP NOW

83a522216-Not Available

84120706Hex Head BoltSHOP NOW

85124818Hex Jam NutSHOP NOW

86502555Bandsaw Upper Blade Guide Locking Handle AssemblySHOP NOW

86z-TableNot Available

87516113Aluminum Die Cast Bandsaw TableSHOP NOW

88503782Knurled NutSHOP NOW

89126315Carriage BoltSHOP NOW

9502700Bandsaw Tension Gauge Wave Spring WasherNot Available

90515954Bandsaw Aluminum Table Table Insert Leveling ScrewSHOP NOW

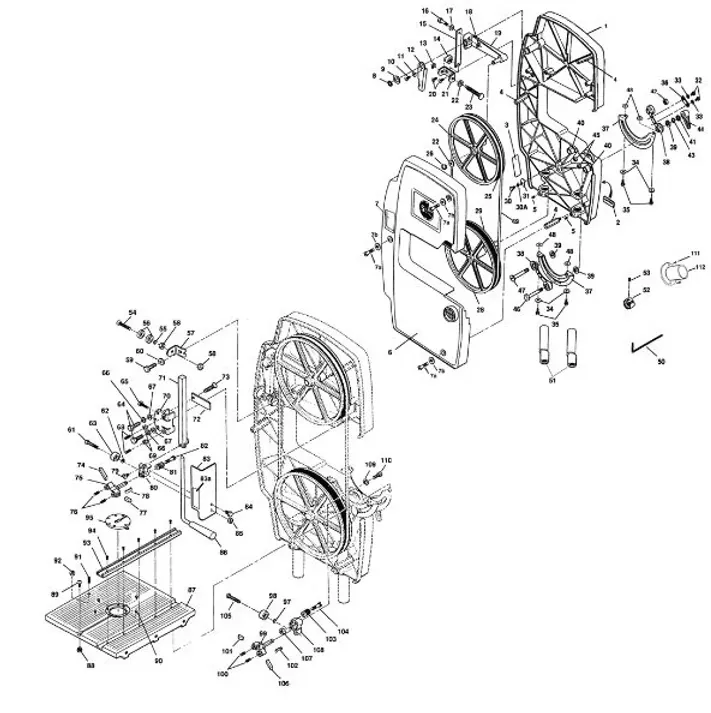

Parts DiagramBandsaw Service Parts
