Exploded Diagrams

Saw Guards Service Parts

Inspect the diagram, then search by reference number, SKU, or description.

RefSKUDescriptionStatus
189z514366(incl 190-199)SHOP NOW
190516338MARK 7 / MARK V 520/510/505 Upper Guard w/InsertSHOP NOW
191514595-Not Available
192514247MARK 7 / MARK V 520/510/505 Upper Sawguard Replaceable InsertSHOP NOW
193514305MARK 7 / MARK V 520/510/505 Upper Saw Guard Hinge PinSHOP NOW
194514411External Retaining RingSHOP NOW
195186923Socket Head Cap ScrewSHOP NOW
196514312MARK 7 / MARK V 520/510/505 Upper Saw Guard Support LinkSHOP NOW
197514114MARK 7 / MARK V 520/510/505 Upper Saw Guard Support Link SpacerSHOP NOW
198514373MARK 7 / MARK V 520/510/505 Upper Saw Guard Support Link HubSHOP NOW
199514367MARK 7 / MARK V 520/510/505 Upper Saw Guard Riving Knife AssemblySHOP NOW
199z514358(incl 202-216)SHOP NOW

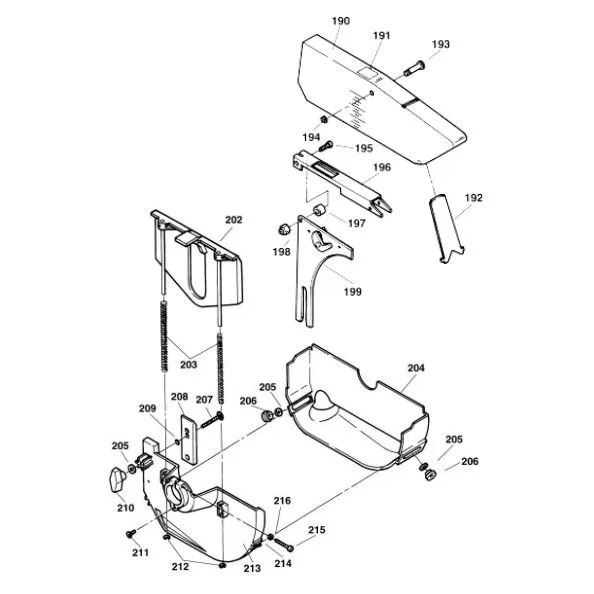

Parts DiagramSaw Guards Service Parts
Saw Guards Service Parts exploded diagram
