MARK V 510 / 505 Floating Extension Tables Service Parts

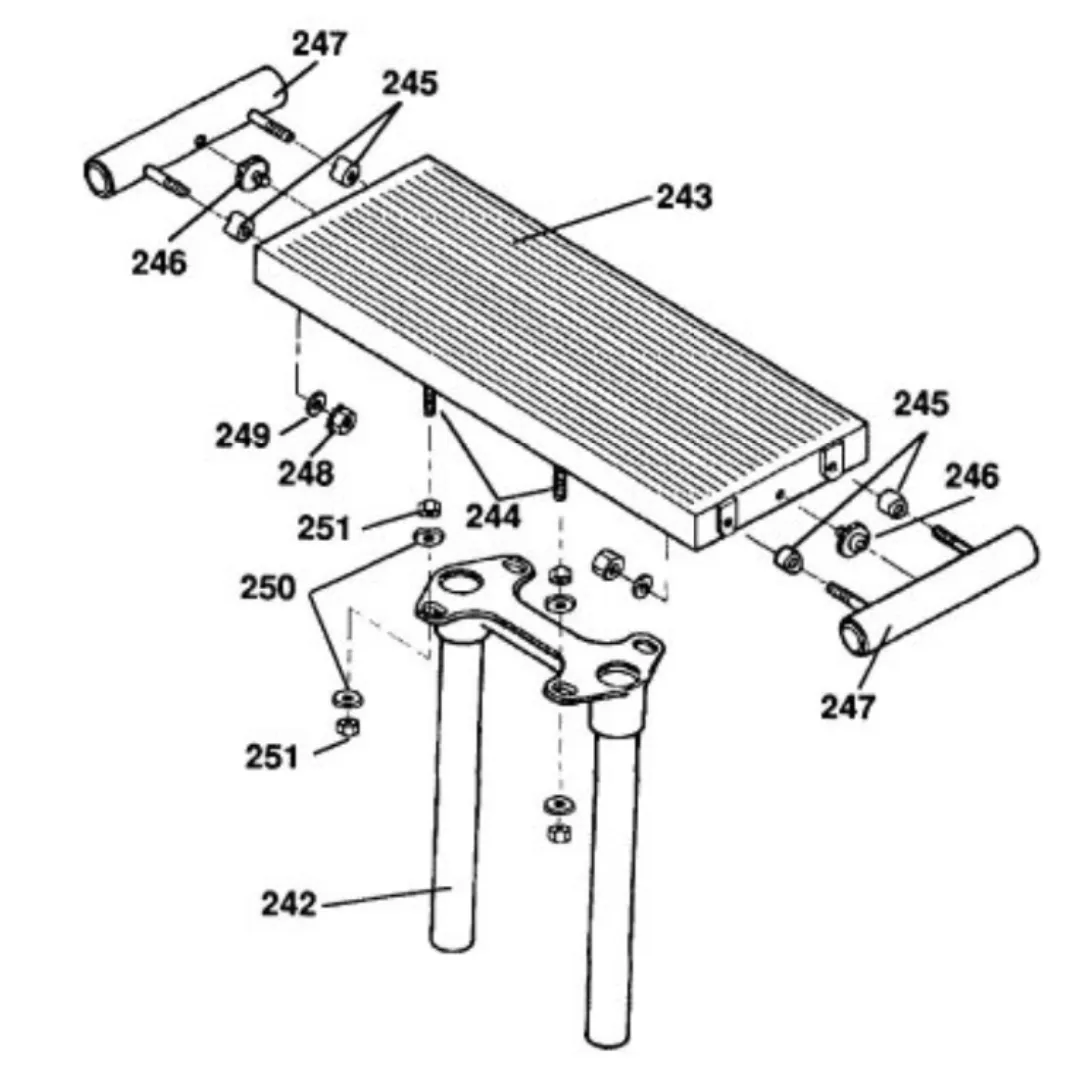

Exploded Diagrams

Inspect the diagram, then search by reference number, SKU, or description.

RefSKUDescriptionStatus

241m514446(incl 243 245-248)Not Available

241z516578(incl 242-251)Not Available

242z516015(incl 243-251)Not Available

242m516014(incl 243-244)Not Available

242504273Extension Table Base (for MARK V)SHOP NOW

243514107MARK 7 / MARK V 520/510/505 Extension Table Top OnlySHOP NOW

244N/ATable Stud AsmNot Available

245514101MARK V 510 Table Tube SpacerSHOP NOW

246514440MARK V 510/505 Table Tube Jack ScrewSHOP NOW

247514663MARK V 510/505 Extension Table Tube & Welded StudsNot Available

248515294Hex Nut with Star WasherSHOP NOW

250naWasherNot Available

251naHex NutNot Available

Parts DiagramMARK V 510 / 505 Floating Extension Tables Service Parts
