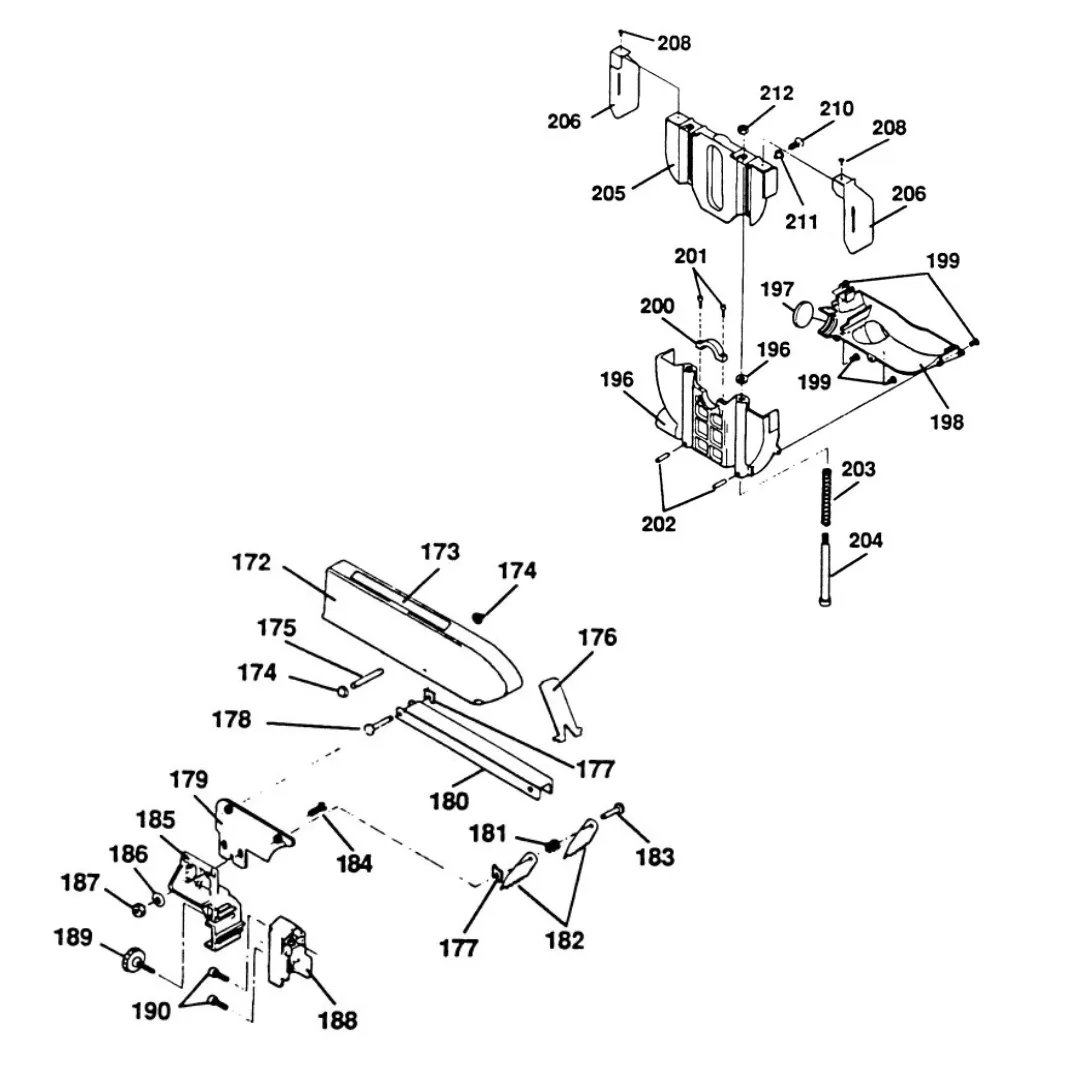

MARK V Model 500 Saw Guards Service Parts
Inspect the diagram, then search by reference number, SKU, or description.
RefSKUDescriptionStatus
171mN/ASaw Guard System Upgrade for 500 (incl 172-213)Not Available
171z513483(incl 172-187)Not Available
172513835(incl 173-175)Not Available
173514595-Not Available
174513486-Not Available
175513485-Not Available
176z513831(incl 177-183)Not Available
176513522Upper Saw Guard InsertNot Available
177513524-Not Available
178514029MARK V 500 Upper Saw Guard Rear Hinge PinNot Available
179513493-Not Available
180513718-Not Available
181513504MARK V 500 Upper Guard Torsion SpringNot Available
182513494MARK V 500 Upper Guard Anti Kickback PawlNot Available
183514028MARK V 500 Upper Saw Guard Front Hinge PinNot Available
184513490-Not Available
185513499MARK V 500 Upper Guard Supprt BracketNot Available
188513500-Not Available
189513496MARK V 500 Upper Guard Mounting KnobNot Available
190znaInner Guard, BottomNot Available
190f513484(incl 196-213)Not Available
190m515290(incl 196-199)Not Available
197515263MARK V 500 Lower Saw Guard Upgrade Outlet PlugNot Available
198514877MARK V 500 Outer Lower Saw GuardNot Available
199514832DC-6000 Dust Collector Motor Housing Mounting ScrewNot Available
200513492-Not Available
201513513Socket Head Cap ScrewNot Available
202513512Spring PinNot Available
203513511MARK V 500 Inner Guard SpringNot Available
204513507-Not Available
205513506MARK V 500 Inner Guard TopNot Available
206515370Router Arm Under-Motor Air DeflectorNot Available
210513514Truss Head ScrewNot Available
211513642-Not Available
213513865Flat WasherNot Available
